Cold air, rain, and stop-and-go traffic will expose a bad visor setup fast. If you're searching for how to install helmet pinlock, the goal is simple - get a clean seal, avoid stressing the visor, and stop fog before it starts.
A Pinlock insert is one of the few helmet upgrades that makes an immediate difference on the road. When it's installed correctly, it creates an insulating air gap between the main shield and the insert, which helps prevent condensation from building where you need clear vision most. When it's installed poorly, you get gaps, distortion, leaks, or an insert that pops loose when you least want it to.
The good news is that installation is usually straightforward. The part that trips riders up is not force or complexity. It's alignment, cleanliness, and knowing how much tension the visor should actually have.
What a Pinlock insert actually does
A Pinlock insert is not just a second piece of plastic clipped onto your shield. It uses a silicone bead around the edge to seal against the inside of the visor. That seal creates a pocket of air, and that air gap is what helps manage fogging.
This matters because if the insert is sitting crooked or not pressing evenly against the shield, the anti-fog performance drops off. You may still get some benefit, but not the full effect. On cold-weather rides or damp morning commutes, that difference is noticeable.
Not every shield is Pinlock-ready, either. You need a visor with the two eccentric pins already installed. If your face shield does not have those mounting pins, you cannot fit a standard Pinlock insert without changing the shield.
Before you install helmet Pinlock, check compatibility
Start with the basics. Confirm that the insert matches your helmet shield model, not just the helmet brand. AGV, Scorpion, and other manufacturers often have several visor shapes that look similar but are not interchangeable.
If the insert is the wrong shape, do not try to make it work. Forcing it can warp the insert, stress the visor, and give you a poor seal even if you manage to clip it in. A correct match should follow the shield contour closely once installed.
You should also inspect the shield itself. If it's heavily scratched, warped, or already under stress around the pin area, installing an insert may not sit right. In that case, replacing the visor first is usually the better call.
What you need before starting
You do not need a workbench full of tools. You need a clean surface, clean hands, and a few minutes without rushing.
Set out your helmet, the Pinlock insert, a microfiber cloth, and if needed, the helmet manual for shield removal. Some riders prefer to install the insert with the visor still on the helmet. That can work. But if your helmet allows quick shield removal, taking it off usually makes the job easier and lowers the chance of fingerprints or uneven pressure.
Choose a clean indoor space if you can. Dust, grit, and wind are not your friends here. One speck trapped between the insert and shield will be right in your line of sight every time the light hits it.
How to install helmet pinlock step by step
The first step is removing any protective film from the Pinlock insert. Most new inserts have a thin plastic layer on one or both sides. Miss that step and the insert will look cloudy or distort your vision. Peel the film carefully from the tabs or edge, and avoid touching the inner surface more than necessary.
Next, clean the inside of the visor with a dry or slightly damp microfiber cloth if the manufacturer allows it. Do not soak it. Do not use household glass cleaner. Many visor coatings do not react well to aggressive chemicals, and a clean shield matters more than a shiny one.
If you removed the visor from the helmet, hold it gently at the edges. If it is still mounted, raise it fully and stabilize the helmet so it does not move around while you work.

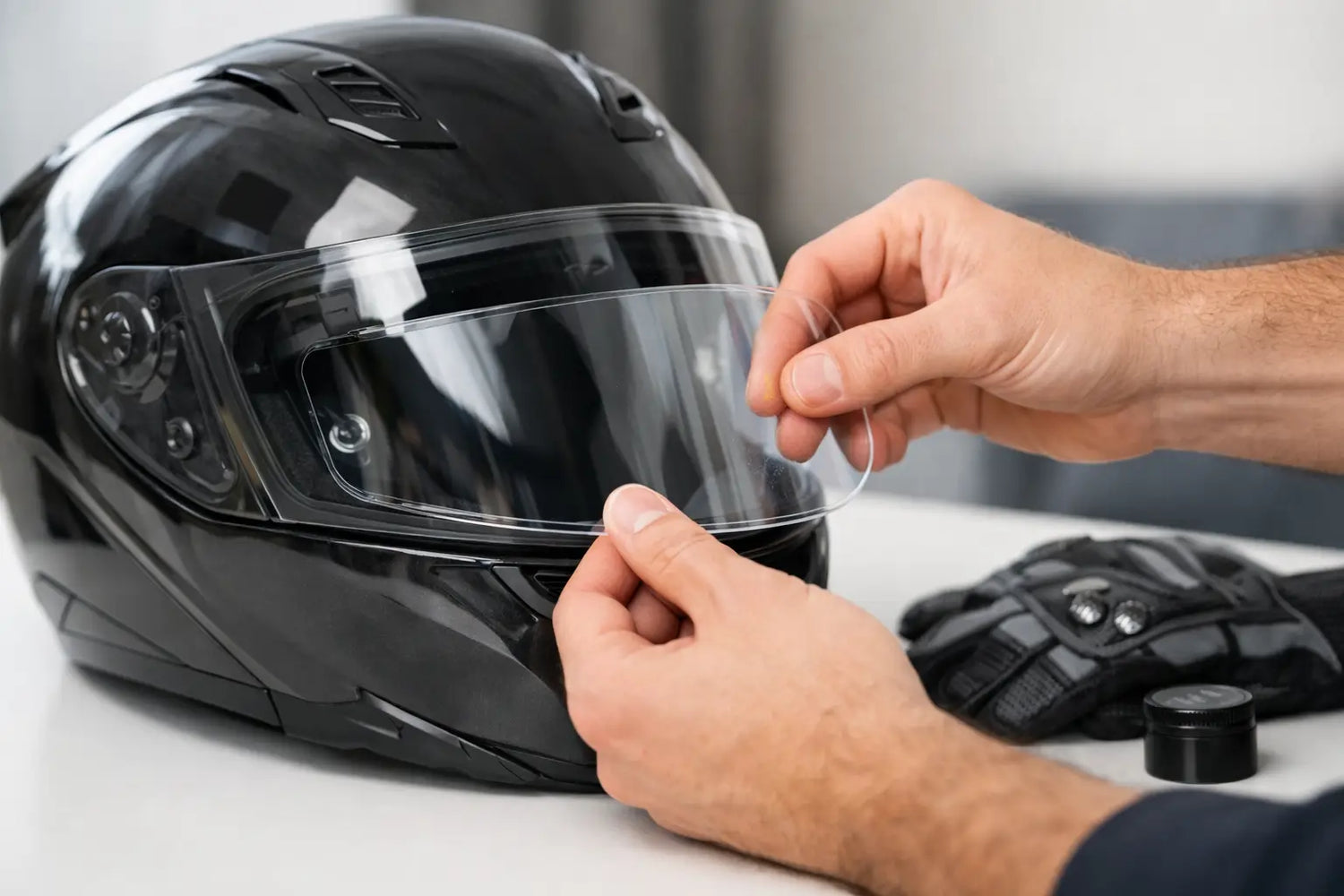

Now look at the Pinlock insert. The silicone bead should face the visor. The insert itself usually has a slight curve, and it needs to match the curve of the shield. Position one side of the insert over one pin first.
At this point, you will flex the visor slightly - not the insert. This is where riders get nervous, but a Pinlock-ready visor is designed for this. Gently bow the shield just enough to let the opposite side of the insert slip over the second pin. It should seat into place without sharp force.
Once both sides are on the pins, release the visor and inspect the fit. The silicone bead should sit evenly against the inside of the shield all the way around. No corners lifting. No obvious gap. No twisted angle.
If the insert looks off-center, remove it and start again. A rushed correction usually leaves fingerprints, dust, or uneven tension.
Getting the seal right matters more than getting it fast
Some visor pins are adjustable because they are eccentric. That means rotating them changes tension on the insert. This is useful when the insert feels too loose or too tight, but it also means you can overdo it.
Too little tension and the silicone bead will not seal properly. Too much tension and you can distort the insert or put unnecessary stress on the shield. The sweet spot is firm, even contact without visible buckling.
If your visor has adjustable pins and the seal is not sitting flush, make very small changes. Recheck after each adjustment. This is not a crank-it-until-it-stops situation.
For many riders, the factory pin setting is already close enough. Only adjust if you can clearly see a sealing issue.
Common mistakes that cause fogging after installation
If a new Pinlock still fogs, the insert itself is not always the problem. Installation errors are more common than defective inserts.
The first issue is trapped dirt or fingerprints between the insert and shield. Even when it does not break the seal, it can create glare and make the setup feel wrong. The second is incomplete seating on the pins. The insert may look installed at a glance, but one side can be slightly off.
Another common mistake is cleaning the insert aggressively. Pinlock inserts are not the same as a hard outer visor. Rubbing too hard, using paper towels, or applying harsh cleaners can damage the anti-fog surface.
Then there is simple wear. Pinlock inserts do not last forever. If your insert is older, scratched, or has lost sealing contact over time, reinstalling it may not restore full performance.
Should you remove the visor first?
It depends on your helmet and how comfortable you are handling the shield. On many full-face and modular helmets, removing the visor gives you better control and visibility during installation. You can flex it gently, inspect the seal closely, and avoid bumping the helmet around.
But some quick-release systems are fiddly, and if you're more likely to scratch the shield while removing it, leaving it on may be the better move. The cleanest job is the one you can do carefully.
If you're new to helmet maintenance, take your time with the shield mechanism. A Pinlock install is easy. Breaking a side plate because you rushed it is not.
After installation, what should you check?
Before the next ride, put the shield back on the helmet if you removed it and cycle it open and closed a few times. Make sure the insert does not interfere with the eyeport gasket or internal sun visor mechanism on modular or drop-down sun shield helmets.
Then look through it in different light. Straight ahead, head tilted, daylight from the side. A properly installed insert should be clear and unobtrusive. You may notice a faint edge around the insert, which is normal. What you should not see is a warped center view or obvious air gap.
If the shield closes tightly against the helmet seal and the insert sits flush, you're ready to ride.
Care tips so the insert lasts
Leave the insert in place unless you actually need to remove it. Frequent removal increases the chance of scratches, contamination, and pin wear.
When you clean it, be gentle. A damp microfiber cloth and patience go a long way. Let bugs and grime soften before wiping. Scrubbing is how riders ruin good optics.
If your helmet gets soaked, let it dry naturally in a ventilated space. High heat can be rough on visor materials, seals, and coatings. That matters even more if you ride in big temperature swings and rely on your anti-fog setup every day.
A properly installed Pinlock is one of those small setup details that pays off every single ride, especially when weather and temperature turn against you. Do it carefully once, and you'll spend a lot less time cracking your shield at stoplights just to see where you're going.
